Where is feature manager in Solidworks?
The FeatureManager design tree on the left side of the SOLIDWORKS window provides an outline view of the active part, assembly, or drawing. This makes it easy to see how the model or assembly was constructed or to examine the various sheets and views in a drawing.
How do you become a feature manager in Solidworks?
Click Options (Standard toolbar) or Tools > Options and select FeatureManager. Click Reset to restore factory defaults for all system options or only for options on this page. Automatically scrolls the FeatureManager design tree to display features corresponding to items selected in the graphics area.
How do I show features in Solidworks?
To show feature descriptions: At the top of the FeatureManager design tree, right-click the part, assembly, or drawing name, and select Tree Display > Show Feature Descriptions. By default, feature descriptions are the same as the feature names and are not displayed.
What does (+) mean in Solidworks?
a warning with the feature. Positions of assembly components are indicated by: (+) over defined.
How do you get the feature tree back in Solidworks?

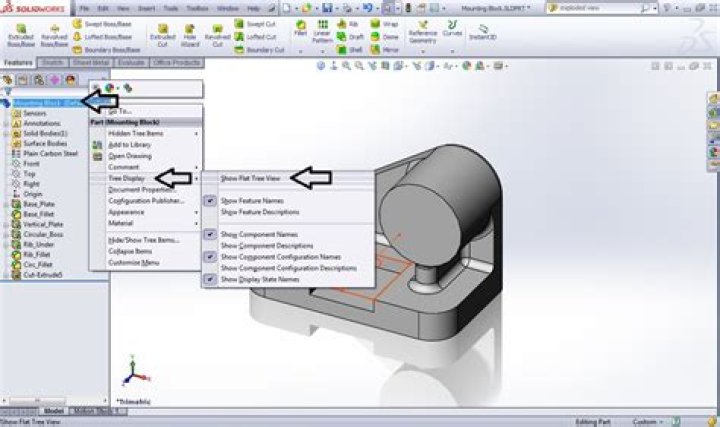

You can select display options for the FeatureManager design tree. To access these options, right-click the part or assembly name in the FeatureManager design tree and click Tree Display.
How do you use property managers in SolidWorks?
The PropertyManager appears on the PropertyManager tab in the panel to the left of the graphics area. It opens when you select entities or commands defined in the PropertyManager. You can choose whether it opens in other cases in Tools > Options > System Options > General .
How do I add a feature in Solidworks?
Smart Feature Insert PropertyManager
- Click Insert Smart Features , which appears over the component in the graphics area.
- In the graphics area, right-click the component and select Insert Smart Features.
- Select the component, then click Insert > Smart Features.
How do I get my feature tree back in Solidworks?
How do I show the command manager in SOLIDWORKS?
To access the CommandManager:
- Click Tools > Customize.
- On the Toolbars tab, select Enable CommandManager.
- Click OK.
