What type of wire is used for branch circuits?
Type NM

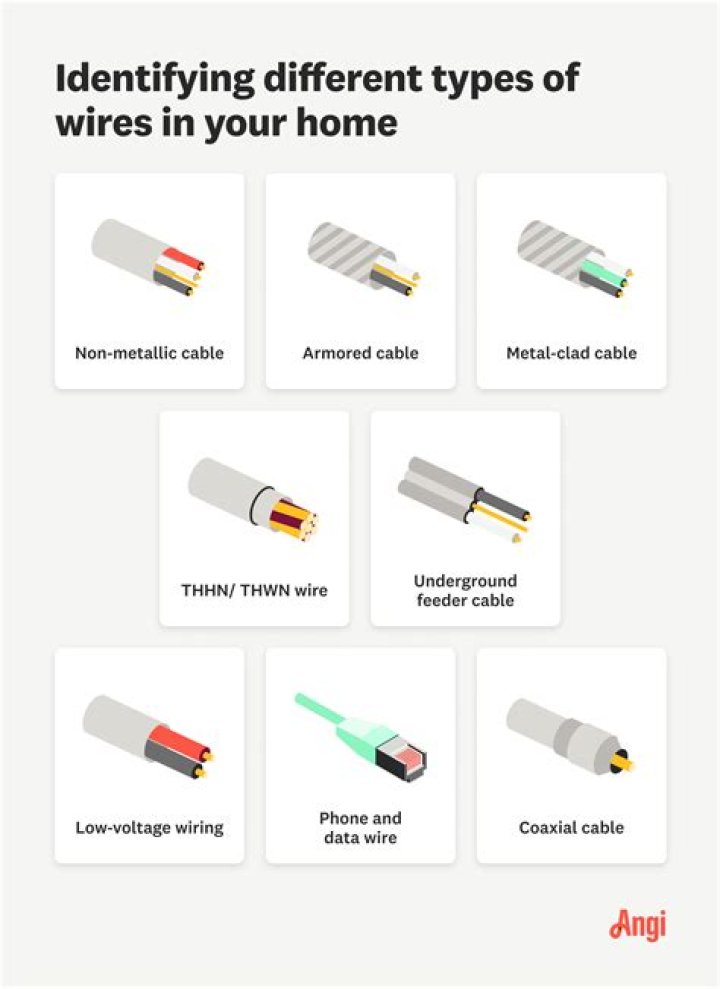

The wire of choice for feeders and branch circuits in residential locations is Type NM, non-metallic sheathed cable.
What is a residential branch circuit?
A branch circuit is defined as that part of an electric circuit extending beyond the last circuit breaker or fuse. The branch circuits start at the breaker box and extend to the electrical devices connected to the service. Branch circuits are the last part of the circuit supplying electrical devices.
Can two branch circuits share a neutral?
If the two circuits are from the same line, the main danger is overloading the neutral with too much current. A fire hazard as the neutral is not connected to a breaker. In short, stay safe and run separate neutrals for each circuit. Shared neutral circuits (multi-wire branch circuits) are absolutely still allowed.
What is a 15 amp branch circuit?
The most common electrical outlets are 15-amp duplex receptacles — 15-amp outlets are designed to accept standard plugs for most small appliances and lamps. If you want to replace an outlet, simply turn off the power to the outlet and remove it.
How many types of branch circuits are in a modern home?
It begins at the breaker box and extends to the devices connected to the service. Typically, 120-volt branch circuits supply power to standard fixtures and outlets and 240-volt circuits power major appliances. There are four types of branch circuits in your home.
How many types of residential circuits are there?
There are four types of branch circuits in your home. Dedicated appliance circuits serve only one appliance such as a dishwasher, refrigerator, garbage disposal, clothes dryer, or air conditioner. They are either 120 or 240-volt circuits and any appliance with a motor requires a dedicated circuit.
How do you identify a multi-wire branch circuit?
A multiwire branch circuit is a branch circuit with a shared neutral. This means there are two or more ungrounded (hot) phase or system conductors with a voltage between them and a shared neutral.
What is the difference between a branch circuit and a feeder?
Branch circuits are not feeders. A branch circuit is defined as, the circuit conductors between the final overcurrent device protecting the circuit and the outlet(s). So, feeder conductors are conductors that are not service conductors and not branch circuit conductors.
Can you tie neutrals together from different circuits?
Neutral wires from different circuits are NOT tied together except at the neutral buss in the panel. Neutral wires carry current. If you tie neutral wires together from different circuits then you run the risk of overloading the neutral wire, which could cause a fire.
Can GFCI outlets share a neutral?
“The only way to use two GFCI receptacles to provide GFCI protection to more than two total receptacles on a shared-neutral circuit is to stop sharing the neutral after the GFCIs – by using two seperate 12/2’s, or 12/2/2.
What size of wires to be used for branch circuit?
The minimum number of 20-ampere, 2-wire general-purpose branch circuits for lighting and receptacles in this dwelling is three. Be careful when calculating the minimum number of 20-ampere branch circuits. At least one 20-ampere laundry circuit and at least two 20-ampere small-appliance branch circuits are required.
What are the three types of branch circuits?
NEC Article 100 also tells us that there are four (4) types of branch circuits: Branch Circuit: appliances Branch Circuit: general purpose Branch Circuit: individual Branch Circuit: multi wires
What is a branch circuit in an electrical circuit?
Nodes, Branches, and Loops Branches //. A branch represents a single element such as a voltage source or a resistor. In other words, a branch represents any two-terminal element. Nodes //. A node is the point of connection between two or more branches. Loops //. A loop is any closed path in a circuit. Node Voltage Problems in Circuit Analysis (VIDEO)
Is an outlet considered part of branch circuit wiring?
A branch circuit is a portion of a wiring system that extends beyond the final, automatic overcurrent protective device (i.e., fuse or breaker) which qualifies for use as branch-circuit protection, and terminates at the utilization device or outlet (such as a lighting fixture, motor, or heater).
