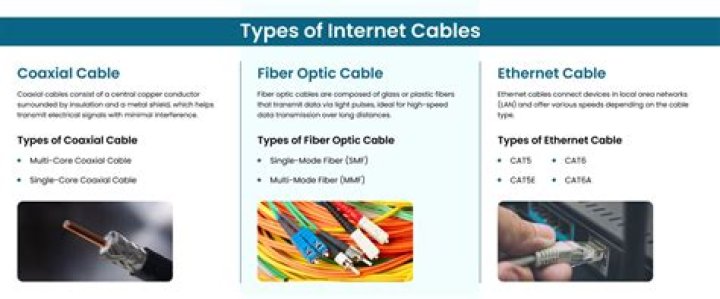

What kind of cable is used for internet?
Twisted-pair Ethernet cable is the most common type of home network wiring used today (and for the foreseeable future). Twisted-pair Ethernet cables are used to connect: DSL/cable routers or modems to computers.
What does an internet cable port look like?
An Ethernet port is a little wider than a phone jack. Because of this shape, it’s impossible to neatly fit an Ethernet cable into a phone jack, which makes it a little easier when plugging in cables. This is what an Ethernet port looks like. It’s a square with a couple of rigid areas at the bottom.
What color cable is for internet?
Crossover Cable Wiring Diagram:
| RJ45 Pin # (END 1) | Wire Color | Wire Color |
|---|---|---|
| 1 | White/Orange | White/Green |
| 2 | Orange | Green |
| 3 | White/Green | White/Orange |
| 4 | Blue | White/Brown |
Is internet and Ethernet cable the same?
Is Ethernet the same as internet? No. The easiest way to remember the difference is that the internet is worldwide, and Ethernet is local. Likewise, the internet connects to a Wide Area Network, also known as a WAN, while the Ethernet connects to a Local Area Network, a.k.a. a LAN.
What’s the difference between an Ethernet cable and a LAN cable?
And ethernet is a local area network access technology. So, any cable that enables connection with a system/device, within a Lan, you can name it “ethernet cable” or “network cable.” Apparently, there is no difference in network and ethernet cables. Network cables comprises of ethernet and Lan cable.
What coaxial cable is used for Internet?
This makes RG-11 cable adept at transferring strong HD signals at speed. Coaxial cables can be used to carry signals for internet connections, but internet signals run at higher frequencies than traditional analogue video. RG-6 cable was designed to fulfil this requirement.
What color is Cat5 cable?
The four wire pairs in a CAT-5 cable are distinguished by the color of their insulation. The four colors are (in order) blue, orange, green and brown. Thus, when refering to the “second pair” of wires, it is the orange pair.
Is there a difference between a yellow and blue ethernet cable?
For example, with the Department of Defense (DoD), the government uses different colors of ethernet cords in order to assign a given level of classification for the data being transmitted within the cable e.g. yellow for top secret, red for mid-level, and blue generally for unclassified data.
