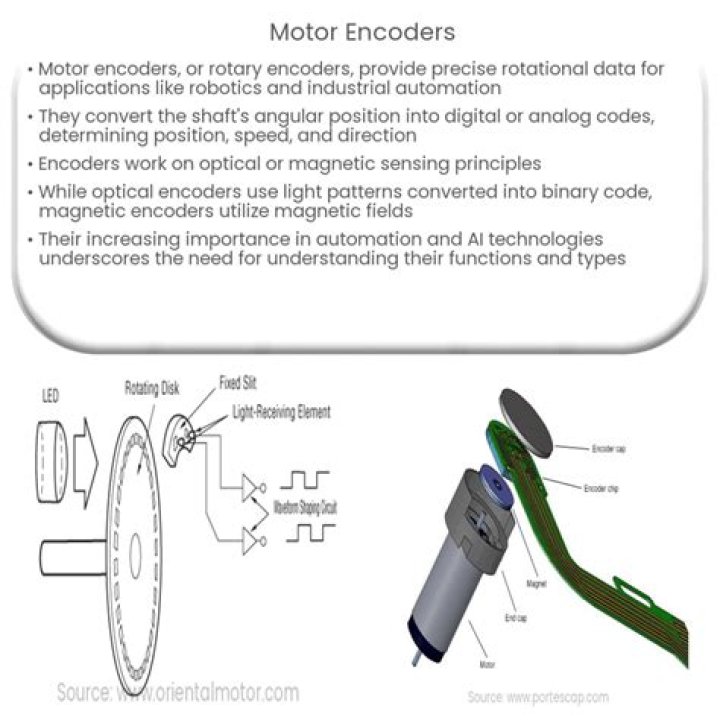

What is an encoder on a motor?

Motor Encoder Overview. An encoder is an electromechanical device that provides an electrical signal that is used for speed and/or position control. Applications that utilize encoders or other sensors to control specific parameters are often referred to as closed-loop feedback or closed-loop control systems.

What does an encoder measure?

An encoder is an electromechanical device that can measure motion or position. Most encoders use optical sensors to provide electrical signals in the form of pulse trains, which can, in turn, be translated into motion, direction, or position. Rotary encoders are used to measure the rotational motion of a shaft.

Why do we use encoders in robots?

An encoder is an electromechanical device which generates an electrical signal depending on the position or the displacement of the measured item. In mobile robotics, rotary encoders are used to measure the movement (direction and speed) of each of the wheels of the robot.

Why do encoders fail?

In such harsh environments, there are three common causes of encoder failure: 1) solid particulate or liquid contamination, 2) mechanical bearing overload, and 3) signal output failure. As a result of any of these problems, the encoder will cease to operate or the system will operate erratically.

What causes encoder failure?

How does an encoder different from a decoder?

Encoder circuit basically converts the applied information signal into a coded digital bit stream. Decoder performs reverse operation and recovers the original information signal from the coded bits. In case of encoder, the applied signal is the active signal input. Decoder accepts coded binary data as its input.

How do you know if an encoder is bad?

Usually can be seen by inspecting the disc under a magnifying glass, and starts out as an intermittent failiure. if your encoder isnt the correct type for your environment (ip rated for use on a mill), then you may end up with grease / dirt getting into the encoder.

How do you test a bad encoder?

Multimeter can not accurately check whether the encoder is completely normal, multimeter can easily detect incremental encoder is good or bad: Turn on the incremental encoder and measure the output voltage of A / B / Z. If neither is present, the power supply is partially damaged or the main chip is damaged.

What is the difference between encoder and decoder?

What is the purpose of encoder and decoder?

The encoders and decoders play an essential role in digital electronics projects; encoders & decoders are used to convert data from one form to another form. These are frequently used in communication system such as telecommunication, networking, etc..to transfer data from one end to the other end.

What is the difference between priority encoder and normal encoder?

An ordinary encoder has a number of input lines but only one of them is activated at a given time. A priority encoder can have more than one input activated at the same time.

How do you select a motor encoder?

Rule 1: Encoder for Positioning — A good recommendation is to select an encoder with a number of pulses higher than 360° divided by the required angular position accuracy; in other words, a number of states that is four to ten times higher. For positioning, select an encoder with a line driver (differential signal).

Where is encoder used?

Encoders are used in devices that need to operate in high speed and with high accuracy. The method of controlling the motor rotation by detecting the motor rotation speed and rotation angle using an encoder is called feedback control (closed loop method).
