What happens to current source in Thevenin Theorem?

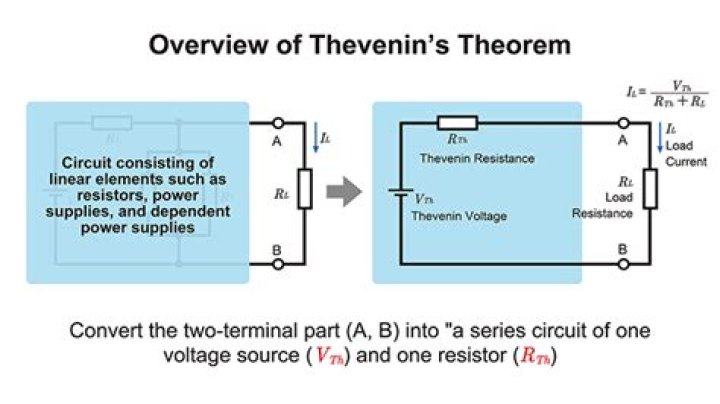

Thevenin theorem (also known as the Helmholtz–Thévenin theorem) states that any linear circuit containing only voltage sources, current sources, and resistances can be replaced by an equivalent combination of a voltage source (VTh) in series with a single resistance (RTh) connected across the load.

What is Thevenin impedance?

The Thevenin impedance is the impedance looking back from AB with V1 replaced by a short circuit and is therefore a a series-parallel combination. For impedances. Z1 = + j. Z2 = + j. Z3 = + j.

What happens to dependent sources in Thevenin?

Thevenin’s theorem can be applied when analyzing a circuit with dependent sources. In this case, all independent sources are turned off and the RTh is calculated by applying a current source or voltage source at the open terminal. When using a voltage source, it can be assumed to be 1V for simple calculations.

What are the examples of dependent sources?

There are four possible dependent sources: the voltage-controlled voltage source (VCVS), the current-controlled voltage source (CCVS), the voltage-controlled current source (VCCS), and the current-controlled current source (CCCS).

How to determine Thevenin’s equivalent circuit?

Following steps are being used to determine Thevenin’s equivalent circuit. The open circuit voltage Voc is calculated at terminals. Short circuit all independent voltage sources. Open circuit all independent current sources. Draw equivalent circuit, connect the load and determine load current.

What is Thevenin’s example?

Thevenin’s Example summary 1 The graph shown in the right hand side gives the final result for Thevenin’s theory. compared with original circuit, it looks a lot easier to further analyze. 2 Generally speaking, out of the two ways in findng equivalent resistor. A is more suitable for graph containing denpendent source.

How do you find Thevenin resistance in a ladder structure?

When the source network has a ladder structure and contains no controlled (dependent) sources, RTH is easily found by series-parallel reduction of the dead network. When the source network contains controlled sources, the Thevenin’s resistance can be found using the method represented by figure 4.

What is Thévenin’s theorem for linear electrical networks?

General Idea: In circuit theory, Thévenin’s theorem for linear electrical networks states that any combination of voltage sources, current sources, and resistors with two terminals is electrically equivalent to a single voltage source V in series with a single series resistor R. Those sources mentioned above can be either independent or dependent.
