What does NPT mean in fittings?
National Pipe Taper

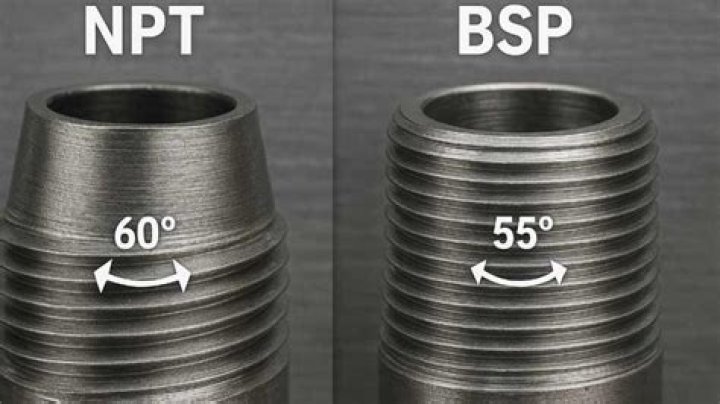

NPT (or National Pipe Taper) is a U.S. standard for tapered threads widely used on pipes and fittings for over 100 years. NPT connections rely on thread deformation- a metal to metal sealing design where the threads of the connectors themselves form together.
What is the difference between FIP and NPT fittings?
As previously mentioned, NPT indicates the defined standard from ANSI – but many people use MPT/MIP and FPT/FIP interchangeably. FPT stands for Female Pipe Threads and FIP stands for Female Iron Pipe which both indicate a female fitting with NPT threads.
What is the difference between an AND NPT fittings?
Non-Tapered Thread. Aside from thread sizes, the most important difference between AN and NPT threaded fasteners is that NPT uses a tapered thread. On the other hand, AN fittings are flare-type compression fittings and, as such, don’t require any form of thread sealant.
Is iron pipe thread the same as NPT?
IPT (Iron Pipe Thread) is equivalent to NPT; Some sources also refer to IPS (Iron Pipe Straight); using IPS risk confusion with NPS listed below.
What is done with pipe threads to ensure good seals?
Simply put, thread sealant is a material that fills the gaps at threaded pipe connections, preventing fluids from leaking out. Besides creating fluid-tight seals, pipe thread sealants also lubricate the threads, making assembly quicker. Pipe thread sealants come in two general varieties—paste and tape.
Can I connect FIP to NPT?
You can force threads together, but if they don’t completely match, then your fittings won’t seal. Most pipe thread types are not interchangeable. NPT, MIP, and FIP work together but do not mate with any other types.
What thread is a 6AN fitting?
The Good News
| Male Thread Size | AN Size* | Male fitting ID |
|---|---|---|
| 7/16-20 | 4AN | 0.17″ |
| 9/16-18 | 6AN | 0.30″ |
| 3/4-16 | 8AN | 0.39″ |
| 7/8-14 | 10AN | 0.48″ |
What is 6 an fitting?
In bolts the number refers to the diameter of the bolt whereas in a fitting it refers to the OD of the tube and thereby have different threads. For example, AN6 bolt has a 3⁄8-24 thread whereas an -6 AN fitting has a 9⁄16-18 thread.
