What do arrows on floor plans mean?

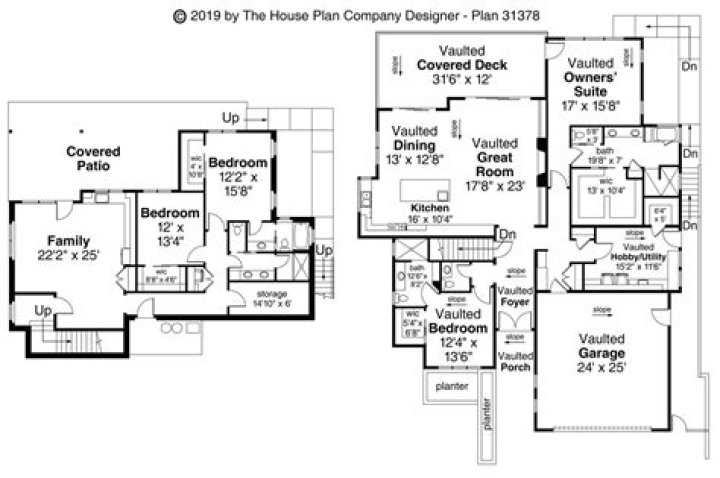

Most floor plans include extra symbols that stand not for physical components but rather various pieces of information. A number riding a line with arrows at both ends displays the dimensions of a particular section of wall; an arrow, a circle and the letter N in combination show the direction of north.

What is included in a House blueprint?

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows).

What are architectural drawing symbols?

Architectural drawing symbols form an important role in any architecture drawing and help to define elements such as floor levels, lighting types and service locations.

How do you read House blueprints?

Here are some general tips to remember when reading your new home blueprints:

1. They are drawn to scale.
2. Pages are typically in the order of when they’ll be constructed.
3. The foundation plan shows specifications of the design you selected.
4. Floor plans will show details and room dimensions for each floor being built.

What does a blueprint show?

A blueprint is a two-dimensional set of drawings that provides a detailed visual representation of how an architect wants a building to look. Blueprints typically specify a building’s dimensions, construction materials, and the exact placement of all its components.

What are material symbols?

Material symbols are used to represent materials or contents on floor plans, elevations, and detail drawings. The outline of the drawing may be filled in with a material symbol to show what the object is made of. Many materials are represented by one symbol in elevation and another symbol in section.

What are the symbols in a floor plan?

Let’s start out with the Architectural symbols because they are usually bigger and they will be drawn into floor plans first. These are things like doors, windows, stairs, walls, cabinets and sinks. Here are the electrical symbols including communications symbols like phones, doorbells, and security systems.

What are the most common electrical blueprint symbols?

The most commonly used electrical blueprint symbols including plug outlets, switches, lights and other special symbols such as door bells and smoke detectors are shown in the figure below. Note:Explanations for common household electrical items such as three-way switches and switched duplex plug outlets are below the figure.

Why do architects use symbols and abbreviations in blueprints?

The number of details that must be included in a complete set of blueprints is so large that architects reduce the information on the drawings to a set of standardized symbols and abbreviations in order to make the drawing easier to read and less cluttered. For reference, every set of architectural drawings includes a symbol legend.

How do you read architectural blueprints?

Keep in mind that scales can vary throughout a set of architectural prints, so check each page and use an architectural scale, or scaled ruler, to make sure you’re reading the print accurately. Recognizing symbols is a first step towards reading a property’s blueprints.
