Can you see atoms using a scanning tunneling microscope?

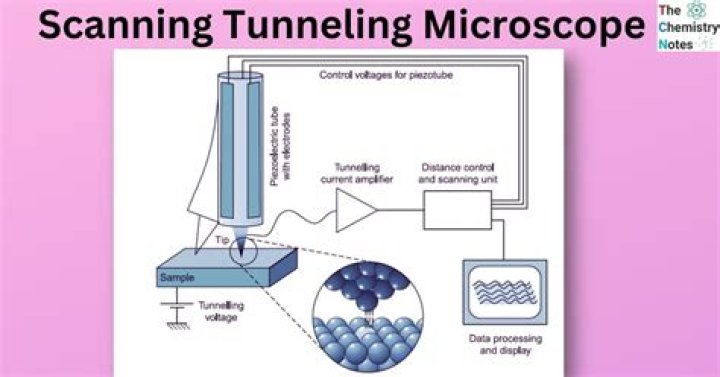

The wavelength of visible light is more than 1000 times bigger than an atom, so light cannot be used to see an atom. Scanning Tunneling Microscopes work by moving a probe tip over a surface we want to image. The probe tip is an extremely sharp – just one or two atoms at its point.

What can a scanning tunneling microscope see?

A scanning tunneling microscope (STM) is a type of microscope used for imaging surfaces at the atomic level. STM senses the surface by using an extremely sharp conducting tip that can distinguish features smaller than 0.1 nm with a 0.01 nm (10 pm) depth resolution.

Who used scanning tunneling microscope to see the real structure of the atom?

Gerd Binnig
7.1. Scanning tunneling microscope (STM) observes atoms immobilized on conducting surfaces. The microscope was invented by Gerd Binnig and Heinrich Rohrer, who worked at IBM, Europe. It was revolutionary in the basic science and application to the degree that it earned the inventors the 1986 Nobel Prize in physics.

What microscopes can see atoms?

An electron microscope can be used to magnify things over 500,000 times, enough to see lots of details inside cells. There are several types of electron microscope. A transmission electron microscope can be used to see nanoparticles and atoms.

What would you see if you looked into iron filings with a scanning tunneling microscope?

What would you see if you looked at iron filings with a Scanning Tunneling Microscope? Since the Scanning Tunneling Microscope is so powerful, you would see tiny spheres which are iron atoms ( the smallest possible unit of iron).

Is quantum tunneling possible?

Now, a team of physicists has devised a simple way to measure the duration of this bizarre phenomenon, called quantum tunneling. However, in the quantum world, it is rare, but possible, for an atom or electron to simply “appear” on the other side, as if a tunnel had been dug through the wall.

Can we see atoms?

Atoms are really small. So small, in fact, that it’s impossible to see one with the naked eye, even with the most powerful of microscopes. Now, a photograph shows a single atom floating in an electric field, and it’s large enough to see without any kind of microscope. 🔬 Science is badass.

What can we use to see atoms?

What is the difference between AFM and SEM?

SEM must be conducted in a vacuum environment, whereas AFM can be performed in a vacuum, ambient, gas or liquid environment. In instances where a sample must be tested in a particular environment, AFM provides a distinct advantage. The technique is frequently used to image samples in liquid in an enclosed environment.

Who invented tem?

Ernst Ruska
Ernst Ruska at the University of Berlin, along with Max Knoll, combined these characteristics and built the first transmission electron microscope (TEM) in 1931, for which Ruska was awarded the Nobel Prize for Physics in 1986.

Who are the inventors of the scanning tunneling microscope?

Gerd Binnig
Ernst RuskaHeinrich Rohrer
Scanning tunneling microscope/Inventors

In 1981, two IBM researchers, Gerd Binnig and Heinrich Rohrer, broke new ground in the science of the very, very small with their invention of the scanning tunneling microscope (STM).
